不知道大家对下面的这个图标眼熟不

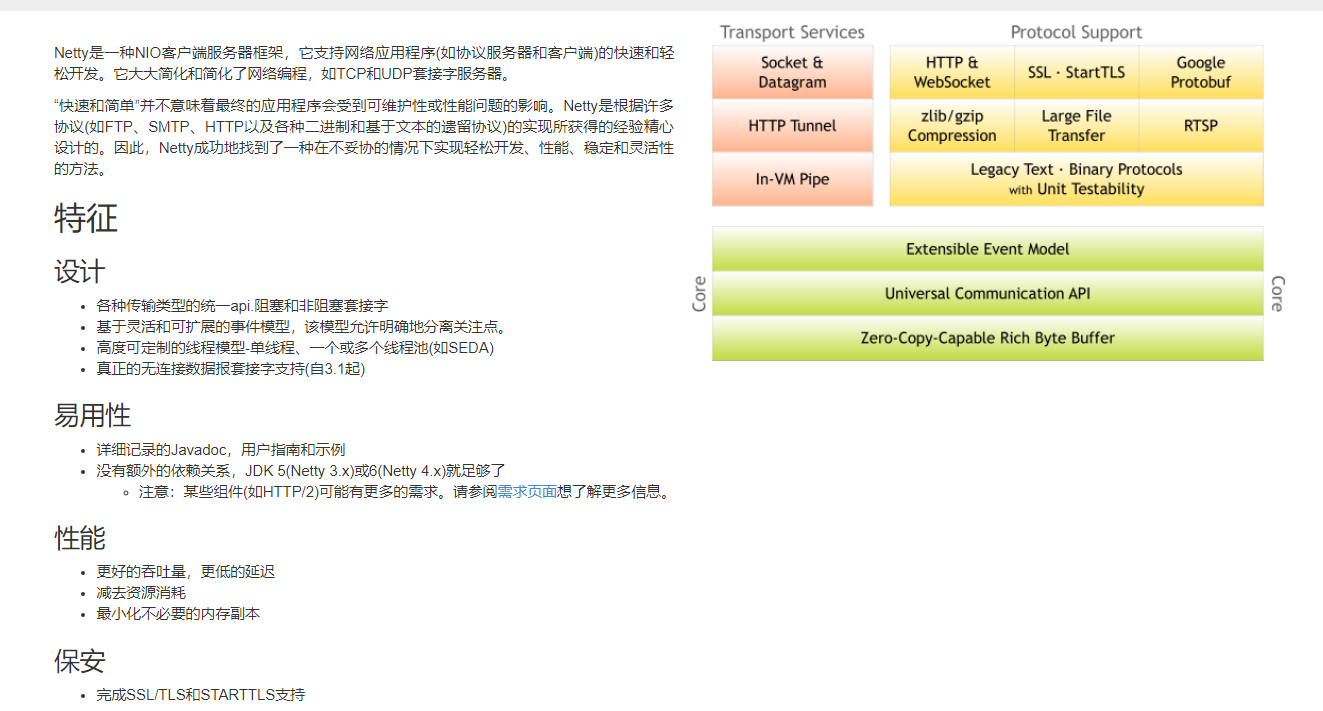

对，这就是netty，最近差点整疯了我的一个网络框架，下方是官网对他的描述，感兴趣大家可以去官网看一下，这不是今天的重点，接着往下看：
为啥说这玩意快把我整疯了啊，哎，好奇害死猫啊，我这人是对网络一窍不通，所以网络的东西我一般是不去触碰的，但是，最近公司的人以及各大论坛里面，netty这个技术真的是如日中天，我身边的朋友去面试的回来也说这个技术问的有点多啊，我好奇心作怪就想去试一下，然后在网上查找了很多资料和代码实现，我就觉得没啥，于是自己搭建了一下玩玩，比方说下面我要跟大家说的这个重点：netty+springboot实现 长连接 - 心跳 - 自动重连 - 通信
然后出问题了，我作为程序员的执拗，不能有bug，这就出问题了，我们先来看一下网上的源码
个人公众号：Java架构师联盟
package com.gzky.study;import com.gzky.study.netty.MsgPckDecode;import com.gzky.study.netty.MsgPckEncode;import io.netty.bootstrap.Bootstrap;import io.netty.channel.*;import io.netty.channel.nio.NioEventLoopGroup;import io.netty.channel.socket.nio.NioSocketChannel;import io.netty.handler.timeout.IdleStateHandler;import java.util.Scanner;/** * @author biws * @date 2020/11/20 **/public class TestFor { private static NioEventLoopGroup worker = new NioEventLoopGroup(); private static Channel channel; private static Bootstrap bootstrap; boolean flag = true; public static void main(String[] args) { for (int i = 0; i < 30; i++) { long start = System.currentTimeMillis(); Scanner sc= new Scanner(System.in); long end = System.currentTimeMillis(); long l1 = end - start; long start2 = System.currentTimeMillis(); start(); long end2 = System.currentTimeMillis(); long l2 = end2 - start2; if (l1 > l2) { System.out.println("Scanner大，false"); } else { System.out.println("true--------------"); } } } private static void start() { bootstrap = new Bootstrap(); bootstrap.group(worker) .channel(NioSocketChannel.class) .option(ChannelOption.TCP_NODELAY, true) .handler(new ChannelInitializer<Channel>() { @Override protected void initChannel(Channel ch) throws Exception { // TODO Auto-generated method stub ChannelPipeline pipeline = ch.pipeline(); pipeline.addLast(new IdleStateHandler(3, 3, 5)); pipeline.addLast(new MsgPckDecode()); pipeline.addLast(new MsgPckEncode()); } }); doConnect(); } protected static void doConnect() { if (channel != null && channel.isActive()) { return; } ChannelFuture connect = bootstrap.connect("127.0.0.1", 8089); //实现监听通道连接的方法 connect.addListener(new ChannelFutureListener() { @Override public void operationComplete(ChannelFuture channelFuture) throws Exception { if (channelFuture.isSuccess()) { channel = channelFuture.channel(); System.out.println("连接成功"); } } }); }}好了，到这里，没问题，成功实现，我就觉得这也没啥啊，这不是挺简单的嘛，难道说他们是在面试的时候问道底层源码啊，这玩意整不了 啊，可能这就是命啊，我就没关，让他执行着，喝口饮料休息一下，没想到突然就报错了，然后又好了，emmmm，这不是自己给自己找事啊

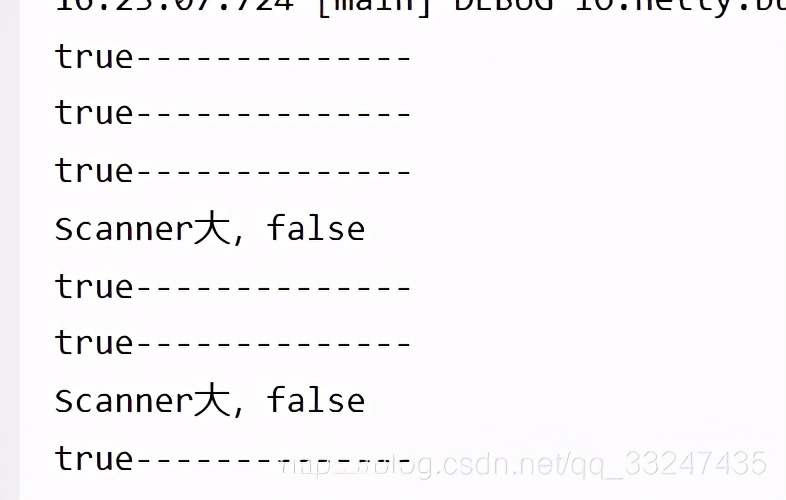

通过测试，模拟30次大约有3次失败的样子，回看源码，其实代码中存在的矛盾不难发现，就是Scanner和Channel谁的创建时间更短。可能在他的电脑上没有什么问题，但是在我这里就不行，感觉更像是在赌博，看你运气怎么样，这样那行啊，理工科的男孩子怎么能靠赌博呢？
但是，咋整，我就在这一块就是一个渣渣啊，没办法，最后还是求助了公司的大神，幸好代码量不是特别大，抽了个周末的下午，俺俩一起在原有的代码基础上对客户端进行可以定程度的改造，现在所有的功能都已经实现，下面附上改进后的代码，有需要的朋友可以自己动手实现一下
还是建议实现一下，毕竟可能我这里可以了，但是在你的pc端又会有其他的而不一样的问题，当然了，要是有云服务器测试一下更 不错
一、pom文件
<!-- 解码and编码器 --><!-- https://mvnrepository.com/artifact/org.msgpack/msgpack --><dependency> <groupId>org.msgpack</groupId> <artifactId>msgpack</artifactId> <version>0.6.12</version></dependency><!-- 引入netty依赖 --><dependency> <groupId>io.netty</groupId> <artifactId>netty-all</artifactId> <version>4.1.6.Final</version></dependency>二、配置项
package com.gzky.study.netty;/** * 配置项 ** * @author biws * @date 2020/11/20 **/public interface TypeData { //客户端代码 byte PING = 1; //服务端代码 byte PONG = 2; //顾客 byte CUSTOMER = 3;}三、消息类型分离器
package com.gzky.study.netty;import org.msgpack.annotation.Message;import java.io.Serializable;/** * 消息类型分离器 ** * @author biws * @date 2020/11/20 **/@Messagepublic class Model implements Serializable { private static final long serialVersionUID = 1L; //类型 private int type; //内容 private String body; public int getType() { return type; } public void setType(int type) { this.type = type; } public String getBody() { return body; } public void setBody(String body) { this.body = body; } @Override public String toString() { return "Model{" + "type=" + type + ", body='" + body + '\'' + '}'; }}四、编码器
package com.gzky.study.netty;import io.netty.buffer.ByteBuf;import io.netty.channel.ChannelHandlerContext;import io.netty.handler.codec.MessageToByteEncoder;import org.msgpack.MessagePack;/** * 编码器 ** * @author biws * @date 2020/11/20 **/public class MsgPckEncode extends MessageToByteEncoder<Object> { @Override protected void encode(ChannelHandlerContext ctx, Object msg, ByteBuf buf) throws Exception { // TODO Auto-generated method stub MessagePack pack = new MessagePack(); byte[] write = pack.write(msg); buf.writeBytes(write); }}五、解码器
package com.gzky.study.netty;import io.netty.buffer.ByteBuf;import io.netty.channel.ChannelHandlerContext;import io.netty.handler.codec.MessageToMessageDecoder;import org.msgpack.MessagePack;import java.util.List;/** * 解码器 ** * @author biws * @date 2020/11/20 **/public class MsgPckDecode extends MessageToMessageDecoder<ByteBuf> { @Override protected void decode(ChannelHandlerContext ctx, ByteBuf msg, List<Object> out) throws Exception { final byte[] array; final int length = msg.readableBytes(); array = new byte[length]; msg.getBytes(msg.readerIndex(), array, 0, length); MessagePack pack = new MessagePack(); out.add(pack.read(array, Model.class)); }}六、公用控制器
package com.gzky.study.netty;import io.netty.channel.ChannelHandlerContext;import io.netty.channel.ChannelInboundHandlerAdapter;import io.netty.handler.timeout.IdleStateEvent;/** * 公用控制器 * * @author biws * @date 2020/11/20 **/public abstract class Middleware extends ChannelInboundHandlerAdapter { protected String name; //记录次数 private int heartbeatCount = 0; //获取server and client 传入的值 public Middleware(String name) { this.name = name; } /** *继承ChannelInboundHandlerAdapter实现了channelRead就会监听到通道里面的消息 */ @Override public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception { Model m = (Model) msg; int type = m.getType(); switch (type) { case 1: sendPongMsg(ctx); break; case 2: System.out.println(name + " get pong msg from" + ctx.channel().remoteAddress()); break; case 3: handlerData(ctx,msg); break; default: break; } } protected abstract void handlerData(ChannelHandlerContext ctx,Object msg); protected void sendPingMsg(ChannelHandlerContext ctx){ Model model = new Model(); model.setType(TypeData.PING); ctx.channel().writeAndFlush(model); heartbeatCount++; System.out.println(name + " send ping msg to " + ctx.channel().remoteAddress() + "count :" + heartbeatCount); } private void sendPongMsg(ChannelHandlerContext ctx) { Model model = new Model(); model.setType(TypeData.PONG); ctx.channel().writeAndFlush(model); heartbeatCount++; System.out.println(name +" send pong msg to "+ctx.channel().remoteAddress() +" , count :" + heartbeatCount); } @Override public void userEventTriggered(ChannelHandlerContext ctx, Object evt) throws Exception { IdleStateEvent stateEvent = (IdleStateEvent) evt; switch (stateEvent.state()) { case READER_IDLE: handlerReaderIdle(ctx); break; case WRITER_IDLE: handlerWriterIdle(ctx); break; case ALL_IDLE: handlerAllIdle(ctx); break; default: break; } } protected void handlerAllIdle(ChannelHandlerContext ctx) { System.err.println("---ALL_IDLE---"); } protected void handlerWriterIdle(ChannelHandlerContext ctx) { System.err.println("---WRITER_IDLE---"); } protected void handlerReaderIdle(ChannelHandlerContext ctx) { System.err.println("---READER_IDLE---"); } @Override public void channelActive(ChannelHandlerContext ctx) throws Exception { // TODO Auto-generated method stub System.err.println(" ---"+ctx.channel().remoteAddress() +"----- is action" ); } @Override public void channelInactive(ChannelHandlerContext ctx) throws Exception { // TODO Auto-generated method stub System.err.println(" ---"+ctx.channel().remoteAddress() +"----- is inAction"); }}七、客户端
package com.gzky.study.netty;import io.netty.bootstrap.Bootstrap;import io.netty.channel.*;import io.netty.channel.nio.NioEventLoopGroup;import io.netty.channel.socket.nio.NioSocketChannel;import io.netty.handler.timeout.IdleStateHandler;import java.util.Scanner;import java.util.concurrent.TimeUnit;/** * Client客户端* * @author biws * @date 2020/11/20 **/public class Client { private NioEventLoopGroup worker = new NioEventLoopGroup(); private Channel channel; private Bootstrap bootstrap; boolean flag = true; public static void main(String[] args) { Client client = new Client(); client.start(); client.sendData(); //通信结束，关闭客户端 client.close(); } private void close() { channel.close(); worker.shutdownGracefully(); } private void start() { bootstrap = new Bootstrap(); bootstrap.group(worker) .channel(NioSocketChannel.class) .option(ChannelOption.TCP_NODELAY, true) .handler(new ChannelInitializer<Channel>() { @Override protected void initChannel(Channel ch) throws Exception { // TODO Auto-generated method stub ChannelPipeline pipeline = ch.pipeline(); pipeline.addLast(new IdleStateHandler(3, 3, 5)); pipeline.addLast(new MsgPckDecode()); pipeline.addLast(new MsgPckEncode()); pipeline.addLast(new Client3Handler(Client.this)); } }); doConnect(); } /** * 连接服务端 and 重连 */ protected void doConnect() { if (channel != null && channel.isActive()) { return; } ChannelFuture connect = bootstrap.connect("127.0.0.1", 8089); //实现监听通道连接的方法 connect.addListener(new ChannelFutureListener() { @Override public void operationComplete(ChannelFuture channelFuture) throws Exception { if (channelFuture.isSuccess()) { channel = channelFuture.channel(); System.out.println("连接成功"); } else { if (flag) { System.out.println("每隔2s重连...."); channelFuture.channel().eventLoop().schedule(new Runnable() { @Override public void run() { // TODO Auto-generated method stub doConnect(); } }, 2, TimeUnit.SECONDS); } } } }); } /** * 向服务端发送消息 */ private void sendData() { //创建连接成功之前停在这里等待 while (channel == null || !channel.isActive()) { System.out.println("等待连接···"); try { Thread.sleep(1000); } catch (InterruptedException e) { e.printStackTrace(); } } System.out.println("连接成功等待输入："); flag = true; Scanner sc = new Scanner(System.in); while (flag) { String nextLine = sc.nextLine(); if ("end".equalsIgnoreCase(nextLine)) { flag = false; } Model model = new Model(); model.setType(TypeData.CUSTOMER); model.setBody(nextLine); channel.writeAndFlush(model); } }}八、客户端控制器
package com.gzky.study.netty;import io.netty.channel.ChannelHandlerContext;/** * 客户端控制器* * @author biws * @date 2020/11/20 **/public class Client3Handler extends Middleware { private Client client; public Client3Handler(Client client) { super("client"); this.client = client; } @Override protected void handlerData(ChannelHandlerContext ctx, Object msg) { // TODO Auto-generated method stub Model model = (Model) msg; System.out.println("client 收到数据： " + model.toString()); } @Override protected void handlerAllIdle(ChannelHandlerContext ctx) { // TODO Auto-generated method stub super.handlerAllIdle(ctx); sendPingMsg(ctx); } @Override public void channelInactive(ChannelHandlerContext ctx) throws Exception { // TODO Auto-generated method stub super.channelInactive(ctx); client.doConnect(); } @Override public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception { System.out.println(name + "exception :"+ cause.toString()); }}九、服务端
package com.gzky.study.netty;import io.netty.bootstrap.ServerBootstrap;import io.netty.channel.*;import io.netty.channel.nio.NioEventLoopGroup;import io.netty.channel.socket.nio.NioServerSocketChannel;import io.netty.handler.timeout.IdleStateHandler;/** * 服务端* * @author biws * @date 2020/11/20 **/public class Server { public static void main(String[] args) { EventLoopGroup bossGroup = new NioEventLoopGroup(1); EventLoopGroup workerGroup = new NioEventLoopGroup(4); try { ServerBootstrap serverBootstrap = new ServerBootstrap(); serverBootstrap.group(bossGroup, workerGroup) .channel(NioServerSocketChannel.class) .localAddress(8089) .childHandler(new ChannelInitializer<Channel>() { @Override protected void initChannel(Channel ch) throws Exception { // TODO Auto-generated method stub ChannelPipeline pipeline = ch.pipeline(); pipeline.addLast(new IdleStateHandler(10,3,10)); pipeline.addLast(new MsgPckDecode()); pipeline.addLast(new MsgPckEncode()); pipeline.addLast(new Server3Handler()); } }); System.out.println("start server 8089 --"); ChannelFuture sync = serverBootstrap.bind().sync(); sync.channel().closeFuture().sync(); } catch (InterruptedException e) { // TODO Auto-generated catch block e.printStackTrace(); }finally{ //优雅的关闭资源 bossGroup.shutdownGracefully(); workerGroup.shutdownGracefully(); } }}十、服务端控制器
package com.gzky.study.netty;import io.netty.channel.ChannelHandlerContext;/** * 服务端控制器 * * @author biws * @date 2020/11/20 **/public class Server3Handler extends Middleware { public Server3Handler() { super("server"); // TODO Auto-generated constructor stub } @Override protected void handlerData(ChannelHandlerContext ctx, Object msg) { // TODO Auto-generated method stub Model model = (Model) msg; System.out.println("server 接收数据 ： " + model.toString()); model.setType(TypeData.CUSTOMER); model.setBody("client你好，server已接收到数据："+model.getBody()); ctx.channel().writeAndFlush(model); System.out.println("server 发送数据： " + model.toString()); } @Override protected void handlerReaderIdle(ChannelHandlerContext ctx) { // TODO Auto-generated method stub super.handlerReaderIdle(ctx); System.err.println(" ---- client "+ ctx.channel().remoteAddress().toString() + " reader timeOut, --- close it"); ctx.close(); } @Override public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception { System.err.println( name +" exception" + cause.toString()); }}十一、测试

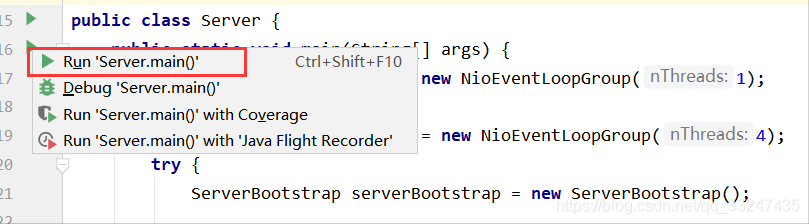

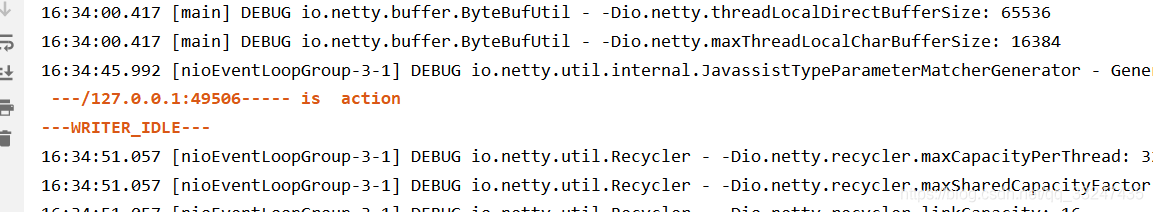

1、启动服务端

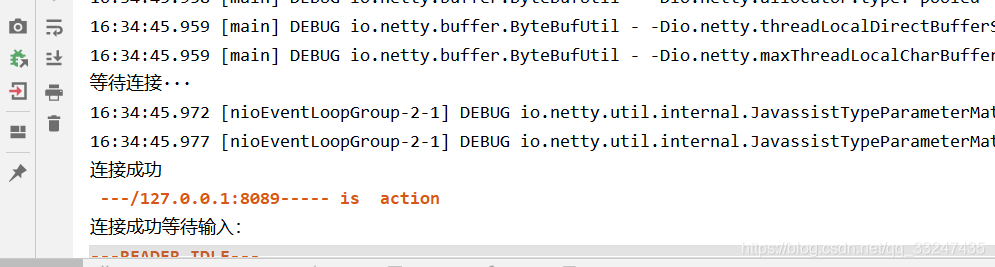

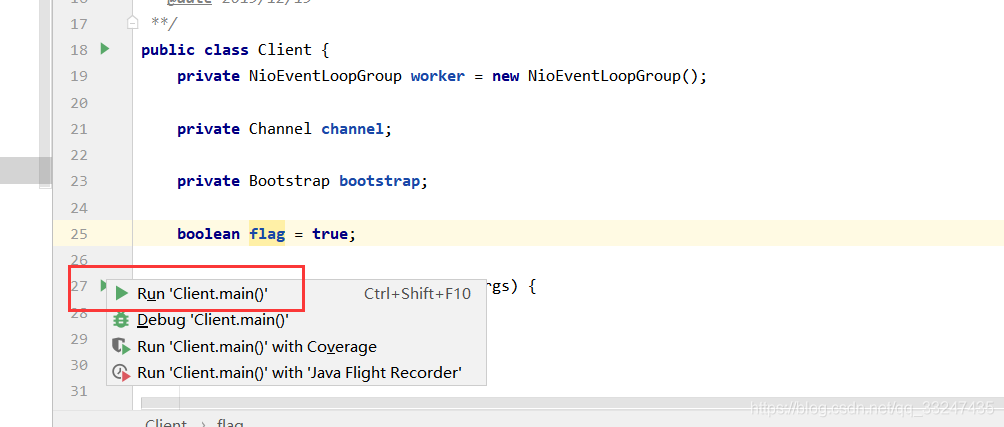

2、启动客户端

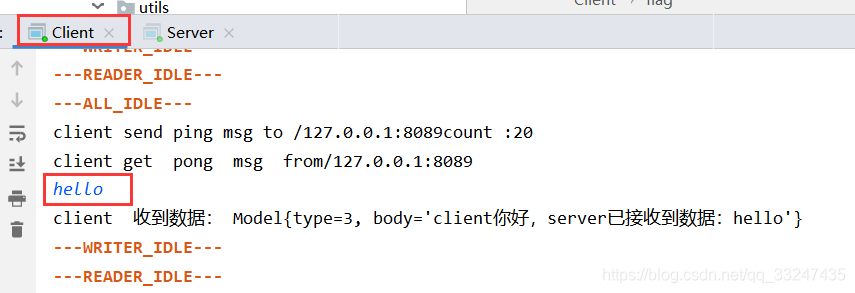

3、客户端发消息
在客户端控制台输入：

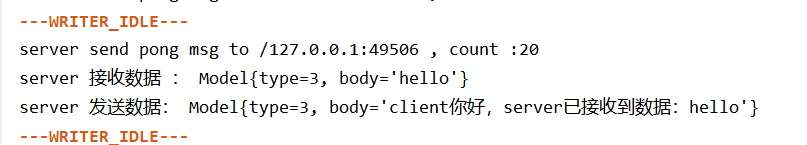

服务端控制台就可以收到hello，并且回信。
好了，到这里，netty - springboot - 长连接 - 心跳 - 自动重连 - 通信就完成了，不知道你实现了没有，建议你可以先收藏，等有时间了自己实现一下，尤其是刚接触的，觉得写得还不错的，可以转发一下，让更多人看见，谢谢
新的技术学习必定是充满BUG的，但是，解决了就是一片光明，这样一点点的改BUG中，剩下的就是你成长的路径
原文转载：http://www.shaoqun.com/a/496151.html
